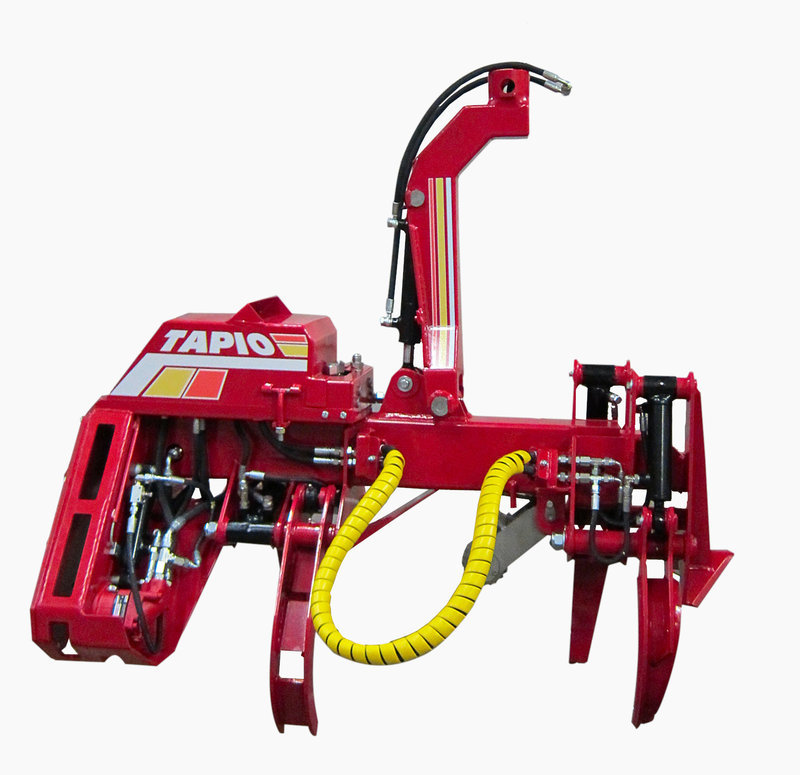

Tapio 350 stroke harvesting head

Product menu

Technical specification

Length x width x height

  1450 x 700 x 850 mm

Weight

  285 kg

Electric system

  12/24 Vdc
Saw blade  .404" 1.6 14"
Saw chain  .404" 1.6 53
Pump/pressure 1500r/min  80 l/min 160 bar
Feed speed 0,8 m/sec
Delimbing power 20 kN
Maximum cutting diameter 350 mm
Minimum delimbing diameter   40 mm
Maximum delimbing diameter  300 mm
Harvester output  28 kW



Tapio 350 harvesting head standard equipment:

- Length measuring with measuring wheel

- Siemens MiniLogo control system

- Siemens Logo TD display

- 2 push button boxes, 6 buttons in both

  boxes connected to Siemens MiniLogo

- Push button box holder, 2 pcs

- 17x0,75 boom cable from Siemens Minilogo

   unit to harvesting head

- Connectors to boom cable

- Covers to connector

- Saw bar .404" 1.6 14"

- Saw chain .404-1.6 53



Load brochure

Tapio 350-350EXS brochure






Additional equipment:

More versatile Logger Control and Length measuring system  as option with additional price





Base machine options:

Agricultural tractors

Small forwarders

Small harvester units
