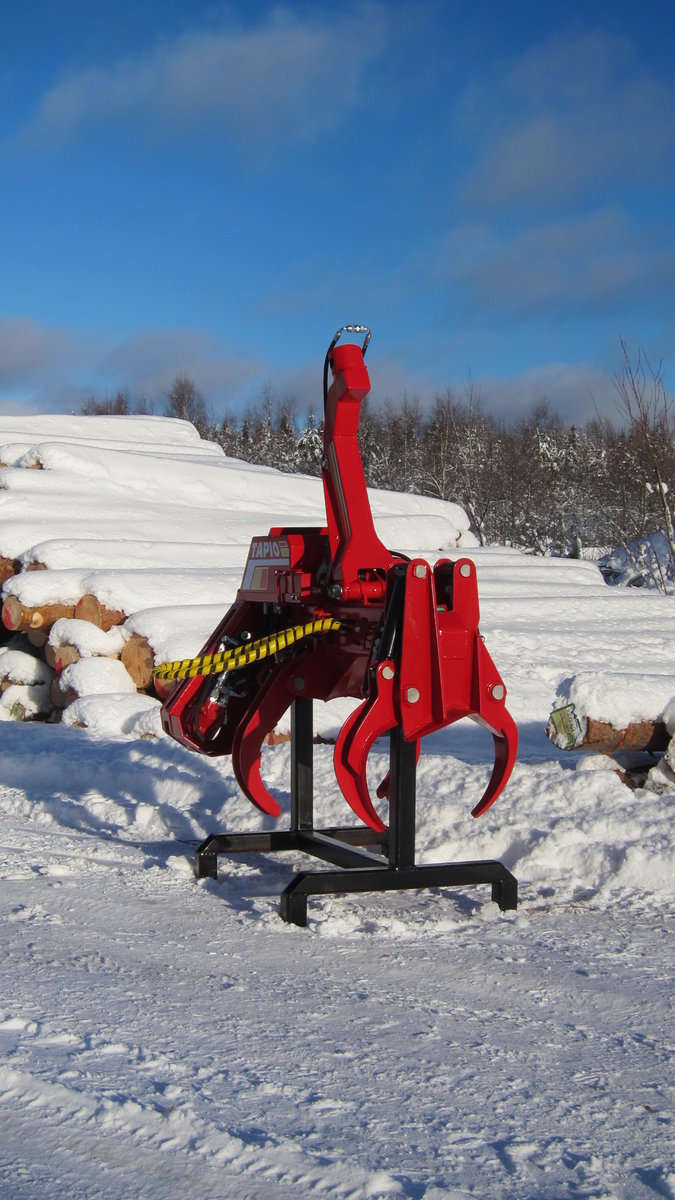

Tapio 350 EXS stroke harvesting head

Product menu

Technical specification

Length x width x height

  1450 x 700 x 850 mm

Weight

  290 kg

Electric system

  12/24 Vdc
Saw blade  .404  1.6 14"
Saw chain  .404  1.6 53
Pump/pressure 1500r/min  80 l/min 160 bar
Feed speed 0,8 m/sec
Delimbing power 20 kN
Maximum cutting diameter 350 mm
Minimum delimbing diameter   40 mm
Maximum delimbing diameter  300 mm
Harvester output  28 kW


Tapio 350 EXS stroke harvesting head

standard equipment:

- Length measuring with measuring wheel

- Siemens MiniLogo control system

- Siemens Logo TD display

- 2 push button boxes, 6 buttons in both

  boxes connected to Siemens MiniLogo

- Push button box holder, 2 pcs

- 17x0,75 boom cable from Siemens Minilogo

   unit to harvesting head

- Connectors to boom cable

- Covers to connector

- Saw bar  .404"  1.6  14″

- Saw chain .404-1.6 53

- two additional hydraulic valves mounted in

  the harvesting head, one for rotator and

  one  for felling cylinder





Load brochure

Tapio 350-350EXS brochure






Additional equipment:

More versatile Logger Control and Length measuring system  as option with additional price





Base machine options:

Excavators of 5-8 tons








Get interested?

Don’t hesitate to contact us if you want further information or an offer!
