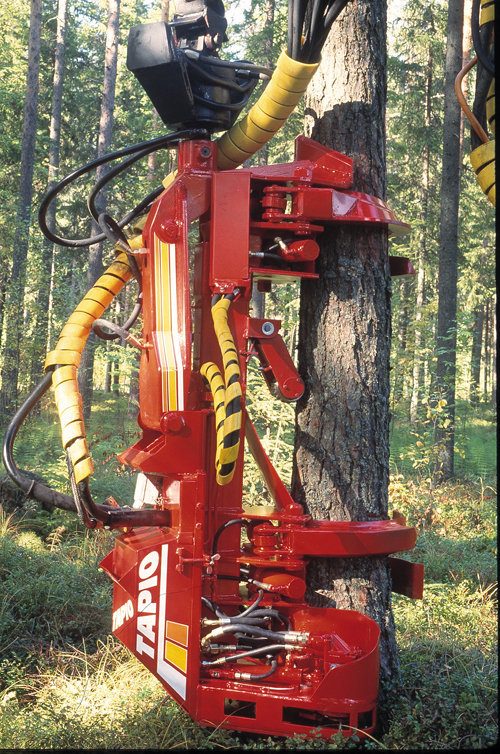

Tapio 400 stroke harvesting head

Product menu

Technical specification

Length x width x height

  1650 x 700 x 700 mm

Weight

  450 kg

Electric system

  12/24 Vdc
Saw blade  18" 2.0 mm
Saw chain  .404" 2.0 mm
Pump/pressure 1500r/min  110 l/min 160 bar
Stroke length  1000 mm
Stroke speed  1 m / sec
Stroke power  25.0 kN
Maximum cutting diameter  450 mm
Maximum delimbing diameter  400 mm
Harvester output  35 kW

Tapio 400 harvesting head standard equipment:



Measuring device Logger

Including:

- connection module to the cabin

- grapple module

- display of measuring device

- rack for display

Length measuring wheel

Saw bar .404-2.0 18”

Saw chain .404-2.0 65

Push button box right

Push button box left

Push button box holders

Pre-selection switch module

2x0,75 +2x1+2x2 boom cable from connection module of the cabin to the grapple module in harvesting head

Owners manual for Tapio 400

Owners manual for Logger



Additional equipment:

Diameter sensor

Seiko printer DPU-414
Mounting supervision



Base machine options:

 Agricultural tractors

 Forwarders

 Harvester units
